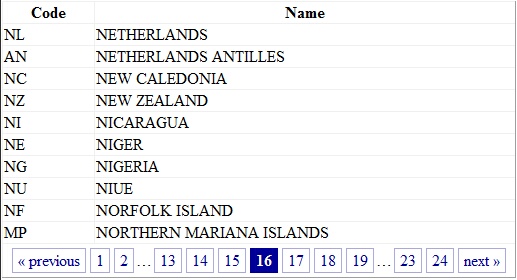

Como vai ficar
Primeiro passo: construir uma lib
Crie um novo projeto web em branco
E adicione 2 classes:
GridViewWithPager.cs
using System;
using System.Globalization;
using System.Reflection;
using System.Web.UI;
using System.Web.UI.HtmlControls;
using System.Web.UI.WebControls;
namespace GradePaginador
{
public class GridViewWithPager: GridView
{
public bool UseCustomPager
{
get { return (bool?) ViewState["UseCustomPager"] ?? false; }
set { ViewState["UseCustomPager"] = value; }
}
protected override void InitializePager(GridViewRow row, int columnSpan, PagedDataSource pagedDataSource)
{
if (UseCustomPager)
CreateCustomPager(row, columnSpan, pagedDataSource);
else
base.InitializePager(row, columnSpan, pagedDataSource);
}
protected virtual void CreateCustomPager(GridViewRow row, int columnSpan, PagedDataSource pagedDataSource)
{
int pageCount = pagedDataSource.PageCount;
int pageIndex = pagedDataSource.CurrentPageIndex + 1;
int pageButtonCount = PagerSettings.PageButtonCount;
TableCell cell = new TableCell();
row.Cells.Add(cell);
if (columnSpan > 1) cell.ColumnSpan = columnSpan;
if (pageCount > 1)
{
HtmlGenericControl pager = new HtmlGenericControl("div");
pager.Attributes["class"] = "pagination";
cell.Controls.Add(pager);
int min = pageIndex - pageButtonCount;
int max = pageIndex + pageButtonCount;
if (max > pageCount)
min -= max - pageCount;
else if (min < 1)
max += 1 - min;
// Create "previous" button
Control page = pageIndex > 1
? BuildLinkButton(pageIndex - 2, PagerSettings.PreviousPageText, "Page", "Prev")
: BuildSpan(PagerSettings.PreviousPageText, "disabled");
pager.Controls.Add(page);
// Create page buttons
bool needDiv = false;
for (int i = 1; i <= pageCount; i++)
{
if (i <= 2 || i > pageCount - 2 || (min <= i && i <= max))
{
string text = i.ToString(NumberFormatInfo.InvariantInfo);
page = i == pageIndex
? BuildSpan(text, "current")
: BuildLinkButton(i - 1, text, "Page", text);
pager.Controls.Add(page);
needDiv = true;
}
else if (needDiv)
{
page = BuildSpan("…", null);
pager.Controls.Add(page);
needDiv = false;
}
}
// Create "next" button
page = pageIndex < pageCount
? BuildLinkButton(pageIndex, PagerSettings.NextPageText, "Page", "Next")
: BuildSpan(PagerSettings.NextPageText, "disabled");
pager.Controls.Add(page);
}
}
private Control BuildLinkButton(int pageIndex, string text, string commandName, string commandArgument)
{
PagerLinkButton link = new PagerLinkButton(this);
link.Text = text;
link.EnableCallback(ParentBuildCallbackArgument(pageIndex));
link.CommandName = commandName;
link.CommandArgument = commandArgument;
return link;
}
private Control BuildSpan(string text, string cssClass)
{
HtmlGenericControl span = new HtmlGenericControl("span");
if (!String.IsNullOrEmpty(cssClass)) span.Attributes["class"] = cssClass;
span.InnerHtml = text;
return span;
}
private string ParentBuildCallbackArgument(int pageIndex)
{
MethodInfo m =
typeof (GridView).GetMethod("BuildCallbackArgument", BindingFlags.NonPublic | BindingFlags.Instance, null,
new Type[] {typeof (int)}, null);
return (string) m.Invoke(this, new object[] {pageIndex});
}
}
}
PagerLinkButton.cs
using System;
using System.Web.UI;
using System.Web.UI.WebControls;
namespace GradePaginador
{
public class PagerLinkButton : LinkButton
{
public PagerLinkButton(IPostBackContainer container)
{
_container = container;
}
public void EnableCallback(string argument)
{
_enableCallback = true;
_callbackArgument = argument;
}
public override bool CausesValidation
{
get { return false; }
set { throw new ApplicationException("Cannot set validation on pager buttons"); }
}
protected override void Render(HtmlTextWriter writer)
{
SetCallbackProperties();
base.Render(writer);
}
private void SetCallbackProperties()
{
if (_enableCallback)
{
ICallbackContainer container = _container as ICallbackContainer;
if (container != null)
{
string callbackScript = container.GetCallbackScript(this, _callbackArgument);
if (!string.IsNullOrEmpty(callbackScript)) OnClientClick = callbackScript;
}
}
}
#region Private fields
private readonly IPostBackContainer _container;
private bool _enableCallback;
private string _callbackArgument;
#endregion
}
}
Compile essa lib, vai gerar uma DLL.
Como usar
Clique com botão direito sobre o Toolbox na área General e clique "Choose Items..."

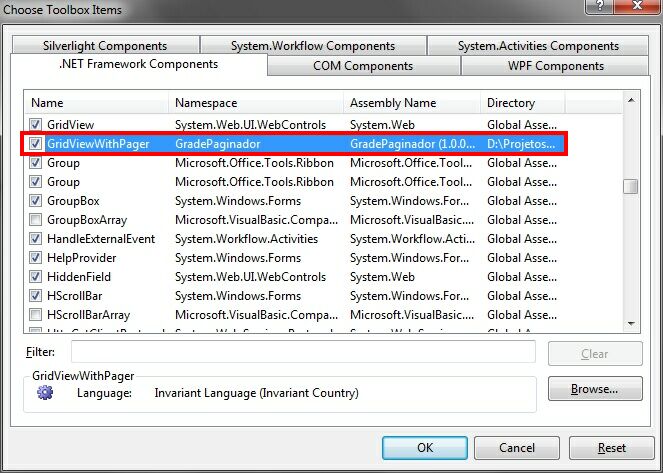

Na tela que aparece, clique em "Browse..." e abra a DLL gerada no passo anterior. Vai ficar como mostra a figura:
Ao pressionar OK, o componente aparece na Toolbox:
Usando no projeto
No seu projeto, abra seu aspx e arraste o componente, vai ficar algo como:
<cc1:GridViewWithPager ID="GridViewWithPager1" runat="server">
</cc1:GridViewWithPager>
Adicione esta informação:
<cc1:GridViewWithPager UseCustomPager="true" ...
Daqui pra frente funciona como uma GridView normal. Adicione os campos, etc.
Formação CSS
Você pode personalizar as cores, fontes, etc, usando esse CSS:
<style>
div.pagination
{
padding: 3px;
margin: 3px;
}
div.pagination a
{
padding: 2px 5px 2px 5px;
margin: 2px;
border: 1px solid #AAAADD;
text-decoration: none; /* no underline */
margin-left: 8px;
margin-right: 8px;
color: #000099;
}
div.pagination a:hover, div.pagination a:active
{
border: 1px solid #000099;
color: #000;
}
div.pagination span.current
{
padding: 2px 5px 2px 5px;
margin: 2px;
border: 1px solid #000099;
font-weight: bold;
background-color: #000099;
color: #FFF;
margin-left: 8px;
margin-right: 8px;
}
div.pagination span.disabled
{
padding: 2px 5px 2px 5px;
margin: 2px;
border: 1px solid #EEE;
color: #DDD;
margin-left: 8px;
margin-right: 8px;
}
</style>
Fonte
•http://kpumuk.info/asp-net/gridview-with-custom-digg-like-pager/
