Como fazer um drag and drop de arquivos do Explorer para dentro de um Windows Forms

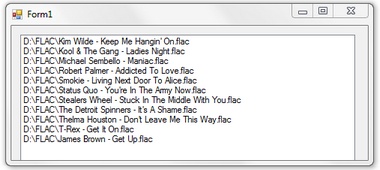

Tela



dragdrop



DragDropManager.cs



using System;

using System.Diagnostics;

using System.Windows.Forms;



namespace MarketMp3

{

  /// <summary>

  /// Interface which should be implemented by parent form to open files dropped from Windows Explorer.

  /// </summary>

  public interface IDropFileTarget

   {

      void OpenFiles(System.Array a);

   }



  /// <summary>

  /// DragDropManager class allows to open files dropped from  Windows Explorer in Windows Form application.

  ///

  /// Using:

  /// 1) Derive parent form from IDropFileTarget interface:

  ///

  ///          public class Form1 : System.Windows.Forms.Form, IDropFileTarget

  ///

  /// 2) Implement IDropFileTarget interface in parent form:

  ///

  ///          public void OpenFiles(Array a)

  ///          {

  ///              // open files from array here

  ///          }

  ///

  ///  3) Add member of this class to parent form:

  ///

  ///          private DragDropManager m_DragDropManager;

  ///

  ///  4) Initialize class instance in parent form Load event:

  ///

  ///          private void Form1_Load(object sender, System.EventArgs e)

  ///          {

  ///              m_DragDropManager = new DragDropManager();

  ///              m_DragDropManager.Parent = this;

  ///          }

  ///

  /// </summary>

  public class DragDropManager

   {

      private Form m_parent;         // reference to owner form



      // delegate used in asynchronous call to parent form:

      private delegate void DelegateOpenFiles(Array a);           // type

      private DelegateOpenFiles m_DelegateOpenFiles;             // instance



      public DragDropManager()

       {

       }



      /// <summary>

      /// Set reference to parent form and make initialization.

      /// </summary>

      public Form Parent

       {

          set

           {

               m_parent = value;               // keep reference to parent form



              // Check if parent form implements IDropFileTarget interface

              if (!(m_parent is IDropFileTarget))

               {

                  throw new Exception("DragDropManager: Parent form doesn't implement IDropFileTarget interface");

               }



              // create delegate used for asynchronous call

               m_DelegateOpenFiles = new DelegateOpenFiles(((IDropFileTarget)m_parent).OpenFiles);



              // ensure that parent form allows dropping

               m_parent.AllowDrop = true;



              // subscribe to parent form's drag-drop events

               m_parent.DragEnter += new System.Windows.Forms.DragEventHandler(this.OnDragEnter);

               m_parent.DragDrop += new System.Windows.Forms.DragEventHandler(this.OnDragDrop);

           }

       }



      /// <summary>

      /// Handle parent form DragEnter event

      /// </summary>

      /// <param name="sender"></param>

      /// <param name="e"></param>

      private void OnDragEnter(object sender, System.Windows.Forms.DragEventArgs e)

       {

          // If file is dragged, show cursor "Drop allowed"

          if (e.Data.GetDataPresent(DataFormats.FileDrop))

               e.Effect = DragDropEffects.Copy;

          else

               e.Effect = DragDropEffects.None;

       }



      /// <summary>

      /// Handle parent form DragDrop event

      /// </summary>

      /// <param name="sender"></param>

      /// <param name="e"></param>

      private void OnDragDrop(object sender, System.Windows.Forms.DragEventArgs e)

       {

          try

           {

              // When file(s) are dragged from Explorer to the form, IDataObject

              // contains array of file names. If one file is dragged,

              // array contains one element.

              Array a = (Array)e.Data.GetData(DataFormats.FileDrop);



              if (a != null)

               {

                  // Call parent's OpenFiles asynchronously.

                  // Explorer instance from which file is dropped is not responding

                  // all the time when DragDrop handler is active, so we need to return

                  // immidiately (especially if OpenFiles shows MessageBox).

                   m_parent.BeginInvoke(m_DelegateOpenFiles, new Object[] { a });

                   m_parent.Activate();       // in the case Explorer overlaps parent form

               }

           }

          catch (Exception ex)

           {

              Trace.WriteLine("Error in DragDropManager.OnDragDrop function: " + ex.Message);

              // don't show MessageBox here - Explorer is waiting !

           }

       }

   }

}



Principal.cs



using System;

using System.IO;

using System.Windows.Forms;



namespace MarketMp3

{

  public partial class Principal : Form, IDropFileTarget

   {



      private DragDropManager m_DragDropManager;



      public Principal()

       {

           InitializeComponent();

       }



      private void Principal_Load(object sender, EventArgs e)

       {

           m_DragDropManager = new DragDropManager();

           m_DragDropManager.Parent = this;

       }



      // este método é executado quando o usuário DROP arquivos aqui

      public void OpenFiles(Array a)

       {

          string sError = "";

          string sFile;



           lstFiles.Items.Clear();



          // process all files in array

          for (int i = 0; i < a.Length; i++)

           {

               sFile = a.GetValue(i).ToString();           // file name



              // Check file name

              // (Let's say we don't accept non-existing files or directories)

              FileInfo info = new FileInfo(sFile);



              if (!info.Exists)

               {

                   sError += "\nIncorrect file name: " + sFile;

               }

              else

               {

                   lstFiles.Items.Add(sFile);

               }

           }



          if (sError.Length > 0)

              MessageBox.Show(this, sError, "Open File Error");

       }

   }

}
